High plasticity, thermal fatigue High temperature alloy GH1140

Grade:
GH1140
Standard:
Bars, plates, strips, pipes

Surface treatment:
Hot rolled,Hot forging ,Cold pull ,Cold rolled, Cold drawn
Color:
Metallic color
High temperature alloy GH1140 Description

The high temperature alloy GH1140 is a solid solution strengthened iron-nickel-based superalloy. In addition to containing a large amount of chromium, a small amount of tungsten, molybdenum, aluminum and titanium are used to strengthen the solid solution. The high temperature alloy GH1140 has medium thermal strength and high plasticity. .Good thermal fatigue, microstructure stability and welding process performance.


High temperature alloy GH1140 Specification

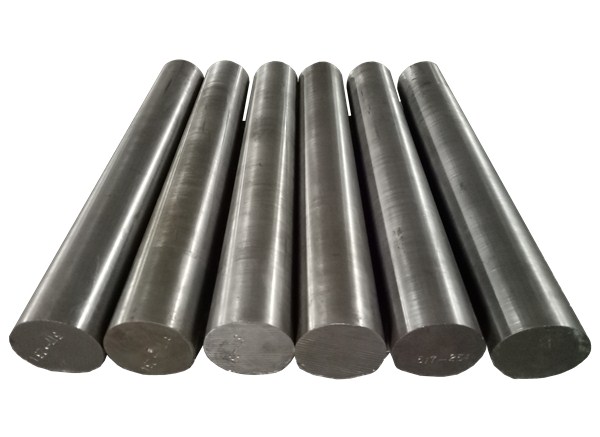

Bar 5.0Mm to 8.0Mm cold drawn; 8.0Mm to 30.0Mm hot rolled; 30.0Mm to180.0Mm hot forged

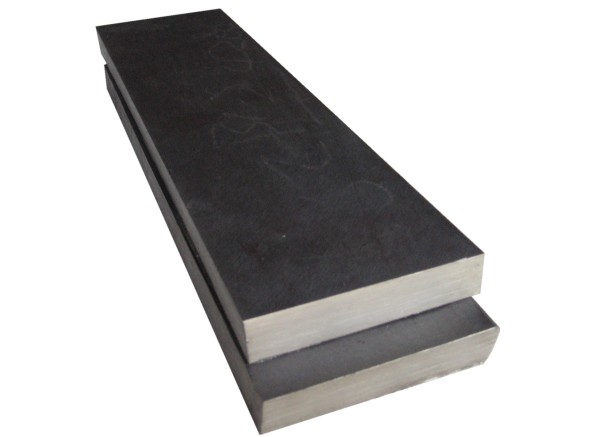

Plate 3.5Mm to 30.0Mm hot rolling; 30.0Mm to 40.0Mm hot forging

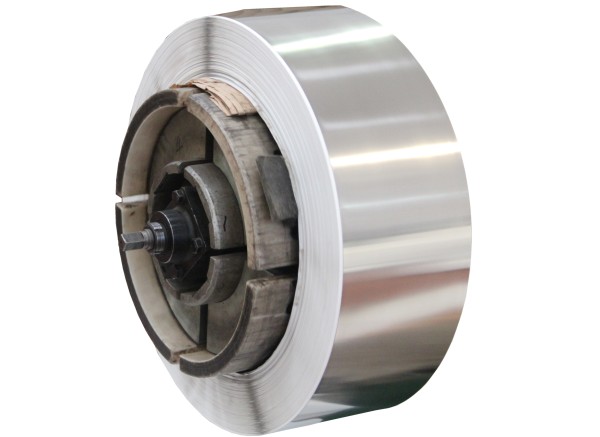

Strip 0.2Mm to 3.5Mm cold rolled
Tube outer diameter 120Mm to 8.0Mm, inner diameter 8.0Mm to 129Mm cold drawn


High temperature alloy GH1140 chemical composition

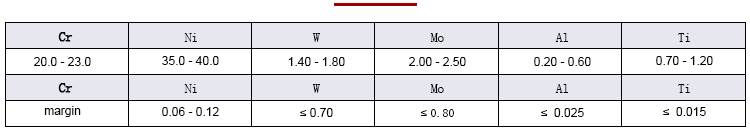

High temperature alloy GH1140 chemical composition chart


Mechanical properties of superalloy GH1140

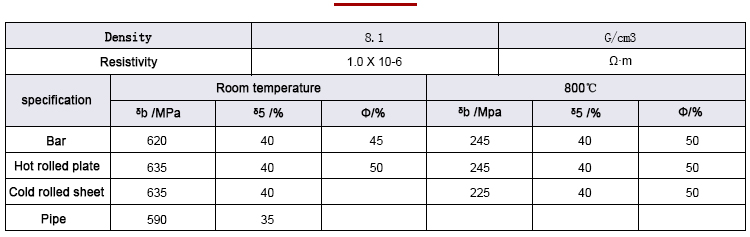

High temperature alloy GH1140 mechanical properties chart


Application of high temperature alloy GH1140
Aeroengine parts, structural parts of gas turbine combustion chambers, turbine engine combustion chamber parts and afterburner parts.
