Iron-nickel copper-based superalloy GH2132

Grade:
GH2132
Standard:
Bars, plates, strips, pipes

Surface treatment:
Hot rolled, hot forged ,cold rolled ,cold drawn
Color:
Metallic color
High temperature alloy GH2132 Description

The high-temperature alloy GH2132 is a Fe-25Ni-15Cr-based high-temperature alloy. It has high yield strength, durability and creep strength below 600℃, and has good processing plasticity and satisfactory welding performance. It is suitable for manufacturing high temperature bearing parts of aero engine that work for a long time below 650℃.


High temperature alloy GH2132 specifications

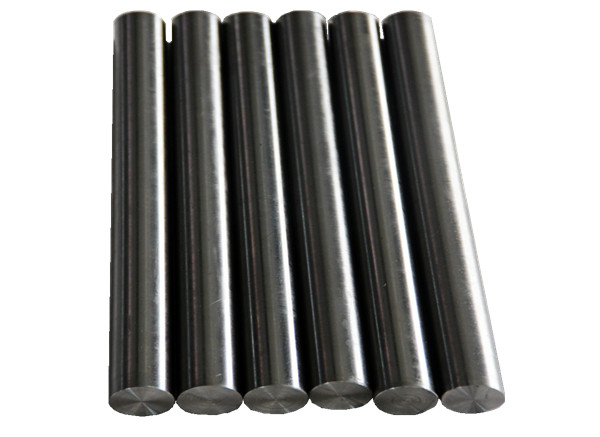

Bar 5.0Mm to 8.0Mm cold drawn; 8.0Mm to 30.0Mm hot rolled; 30.0Mm to 180.0Mm hot forged

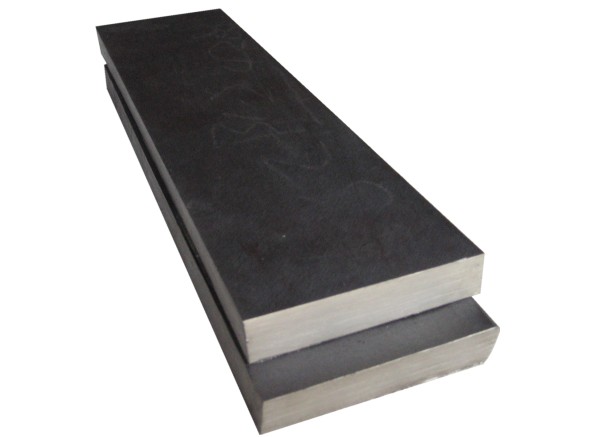

Plate 3.5Mm to 30.0Mm hot rolling; 30.0Mm to 40.0Mm hot forging

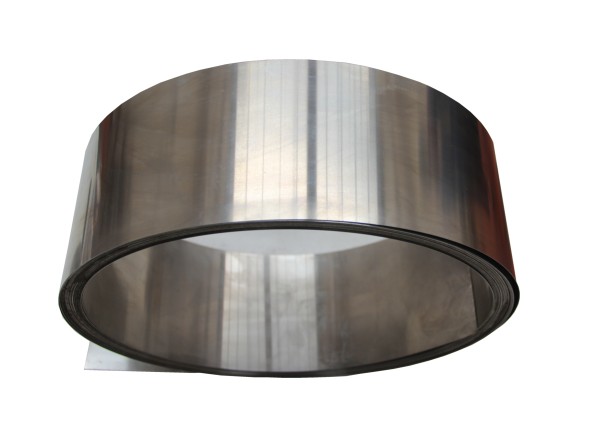

Strip 0.2Mm to 3.5Mm cold rolled


High temperature alloy GH2132 chemical composition

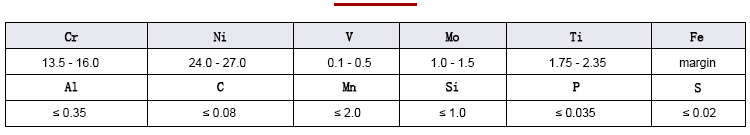

Data sheet of chemical composition of superalloy GH2132


Physical properties of superalloy GH2132

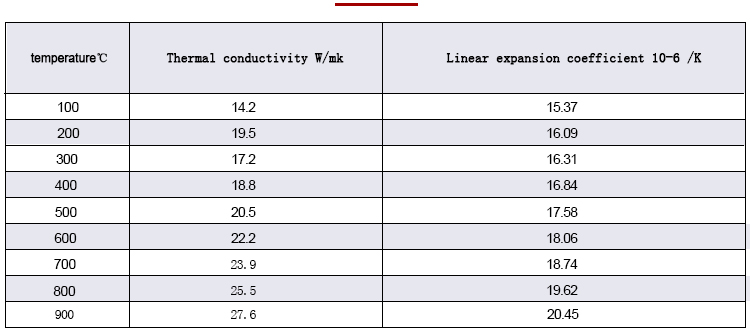

Physical properties of GH2132 superalloy data sheet


Expansion coefficient of superalloy GH2132

Data sheet of expansion coefficient of GH2132 superalloy


Application of high temperature alloy GH2132
Aero-engine components, engine compressor discs, turbine discs, bearing rings, casings, turbocharger and turbine wheels, afterburner parts and fasteners.
