Titanium alloy flange suppliers of various types of flanges

Grade:
TA0,TA1,TA2,TA3,TA9,TA10,TC4
Standard:
GB/T, JB, ASTM, DIN

Surface treatment:
Forged surface, rolled surface, car polished surface, polished surface
Color:
Matt color

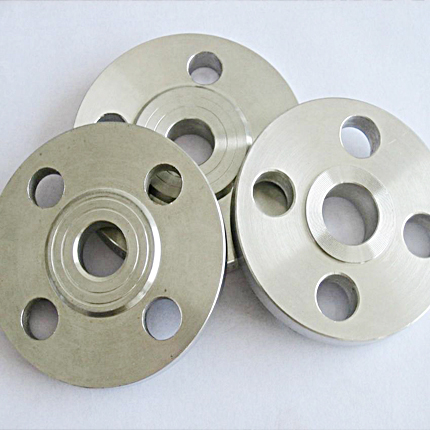

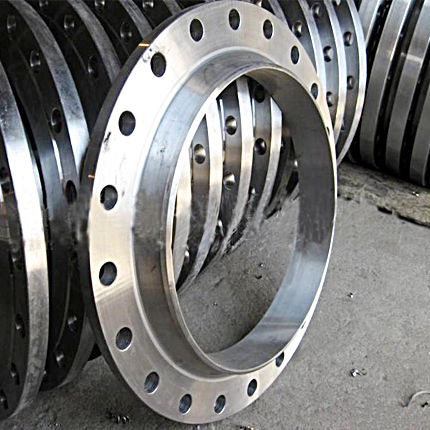

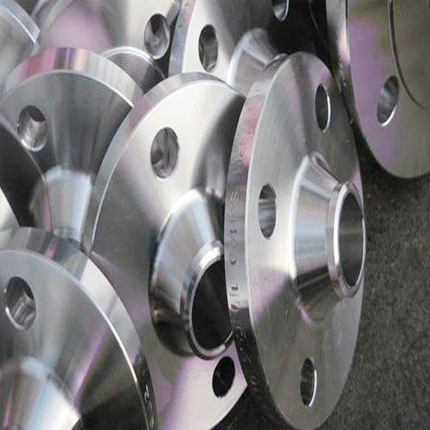

Titanium alloy flange Description

Titanium alloy flange is a part made of non-ferrous metal titanium alloy that connects the pipe and the pipe to each other, and is connected to the pipe end; the titanium alloy flange has holes and bolts make the two flanges tightly connected. The flanges are sealed with gaskets. Flanged pipe fittings refer to pipe fittings with flanges (lugs or sockets).

It can be formed by casting, or it can be formed by screw connection or welding. The flange connection (flange, joint) is composed of a pair of flanges, a gasket and several bolts and nuts. The gasket is placed between the sealing surfaces of the two flanges. After tightening the nut, the specific pressure on the gasket surface reaches a certain value and deforms and fills up the unevenness of the sealing surface to make the connection tight and leak-proof.


Titanium alloy flange specifications

Size:1/2″NB TO 60″NB
Grade pressure:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.


Chemical composition of titanium alloy flange

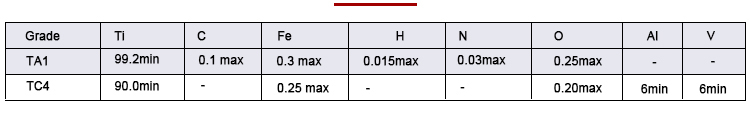

Titanium alloy flange composition analysis data sheet


Mechanical properties of titanium alloy flange

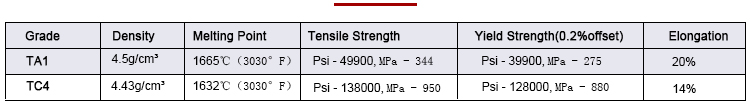

Mechanical property data sheet of titanium alloy flange


Types of Titanium Flanges
Titanium Slip On Flanges、Titanium Weld Neck Flanges、 Titanium Blind Flanges、Titanium Orifice Flanges、Titanium Socket weld Flanges、Titanium Threaded Flanges、Titanium Long weld Neck Flanges、 Titanium RTJ Flanges、 Titanium Reducing Flanges、Titanium Forged Flanges
