Expansion alloy 4J80 nickel-based non-magnetic fixed expansion porcelain sealing alloy

Grade:
4J80
Standard:
Bars, plates, strips, wires, pipes

Surface treatment:
Hot forging, Hot rolled, Cold rolled, Cold pull ,Cold drawn
Color:
Metallic color
Expansion alloy 4J80 Description

Expansion alloy 4J80 is a nickel-based non-magnetic fixed expansion porcelain sealing alloy. Medium thermal expansion coefficient in the room temperature range of 600.


Expansion alloy 4J80 specification

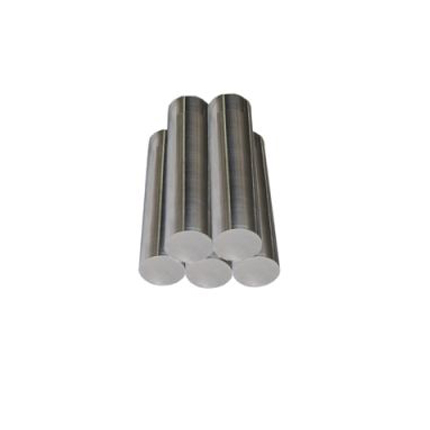

Bar 5.0Mm to 8.0Mm cold drawn; 8.0Mm to 30.0Mm hot rolled; 30.0Mm to 180.0Mm hot forged
Plate 3.5Mm to 30.0Mm hot rolling; 30.0Mm to 40.0Mm hot forging

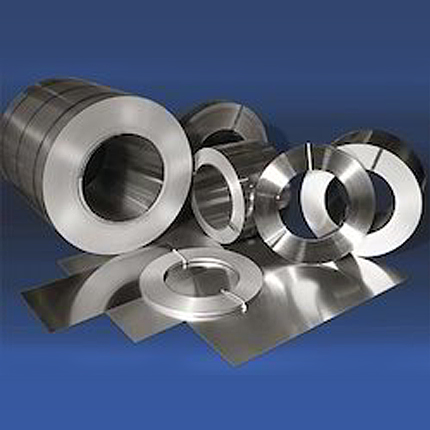

Strip 0.2Mm to 3.5Mm cold rolled
Flat wire 0.5Mm to 5.0Mm hot rolled

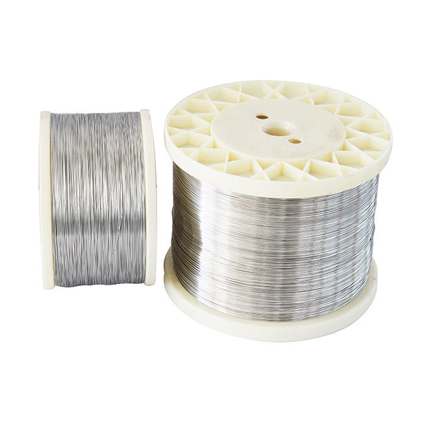

Round wire 0.1Mm to 5.0Mm cold drawn
Capillary tube outer diameter 8.0Mm to 1.0Mm , inner diameter 0.1Mm to 8.0Mm cold drawn
Tube outer diameter 120Mm to 8.0Mm, inner diameter 8.0Mm to129Mm cold drawn

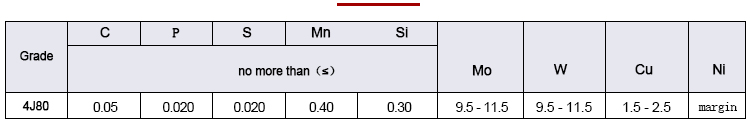

Chemical composition of expanded alloy 4J80

Chemical composition data sheet of expansion alloy 4J80

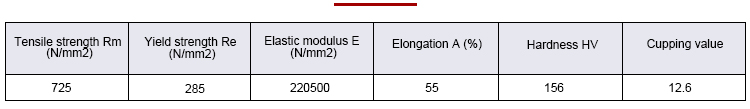

Mechanical properties of expanded alloy 4J80

Data sheet of mechanical properties of expansion alloy 4J80


Magnetic permeability of expanded alloy 4J80 alloy sample after heat treatment

Permeability data sheet of heat treated expanded alloy 4J80


Application of expansion alloy 4J80

Used for non-magnetic sealing parts of special electronic instruments, mainly used for vacuum tight welding and edge welding of high alumina ceramic materials.
