OEM Silver Round Expansion Alloy Precision Small CNC Parts Machining

Grade:
4J28
Standard:
Bars, plates, strips, wires, pipes

Surface treatment:
Hot rolled, Hot forging, Cold rolled, Cold pull, Cold drawn
Color:
Metallic color
Expansion alloy 4J28 Description

Expansion alloy 4J28 (Alloy 27) is a glass-sealed iron-chromium alloy that has a linear thermal expansion coefficient similar to that of soft glass within a certain range, and is corrosion resistant.


Expansion alloy 4J28 specification
Bar 5.0Mm to 8.0Mm cold drawn; 8.0Mm to 30.0Mm hot rolled; 30.0Mm to 180.0Mm hot forged

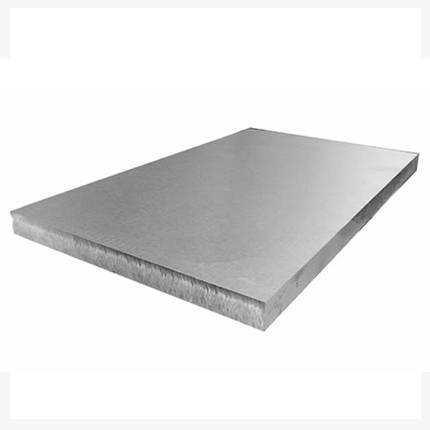

Plate 3.5Mm to 30.0Mm hot rolling; 30.0Mm to 40.0Mm hot forging

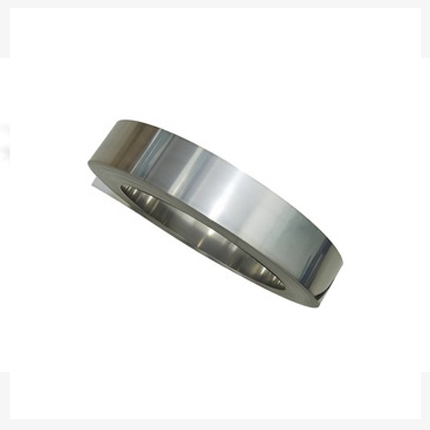

Strip 0.2Mm to 3.5Mm cold rolled
Flat wire 0.5Mm to 5.0Mm hot rolled

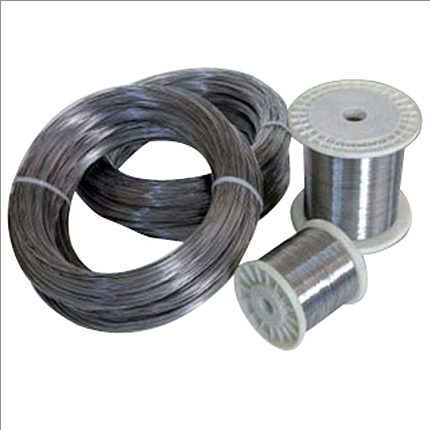

Round wire 0.1Mm to 5.0Mm cold drawn

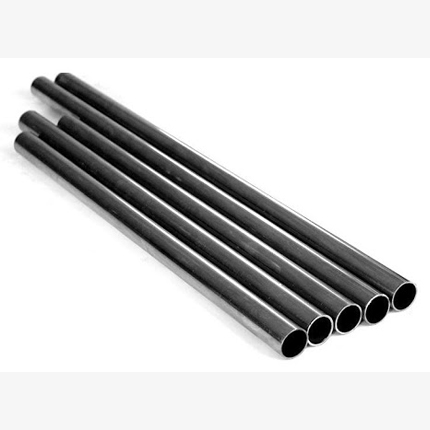

Capillary tube outer diameter 8.0Mm to 1.0Mm, inner diameter 0.1Mm to 8.0Mm cold drawn
Tube outer diameter 120Mm to 8.0Mm, inner diameter 8.0Mm to 129Mm cold drawn

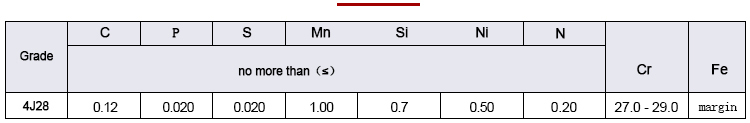

Chemical composition of expanded alloy 4J28

Chemical composition data sheet of expansion alloy 4J28

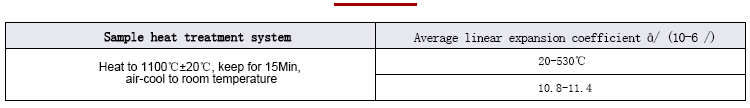

Expansion alloy 4J28 average linear expansion coefficient

Table of mean linear expansion coefficient data for expansion alloy 4J28


Coefficient of linear expansion of expansion alloy 4J28

Data sheet of linear expansion coefficient of expansion alloy 4J28


Application of expansion alloy 4J28
Suitable for sealing iron-chromium alloy with soft glass on electrical components
