Expansion alloy 4J34 iron nickel cobalt porcelain sealing alloy

Grade:
4J34
Standard:
Bars, plates, strips, wires, pipes

Surface treatment:
Hot forging, Hot rolled, Cold rolled, Cold pull ,Cold drawn
Color:
Metallic color
Expansion alloy 4J34 Description

Expansion alloy 4J34 is an iron-nickel-cobalt constant-expansion sealing alloy. It has a linear thermal expansion coefficient similar to that of 95% AL203 ceramics in the range of -60- +600℃.


Expansion alloy 4J34 specifications

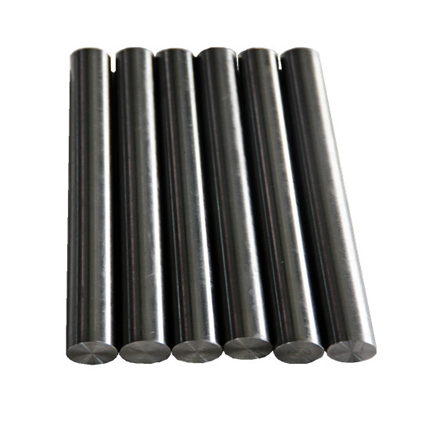

Bar 5.0Mm to 8.0Mm cold drawn; 8.0Mm to 30.0Mm hot rolled; 30.0Mm to180.0Mm hot forged
Plate 3.5Mm to 30.0Mm hot rolling; 30.0Mm to 40.0Mm hot forging

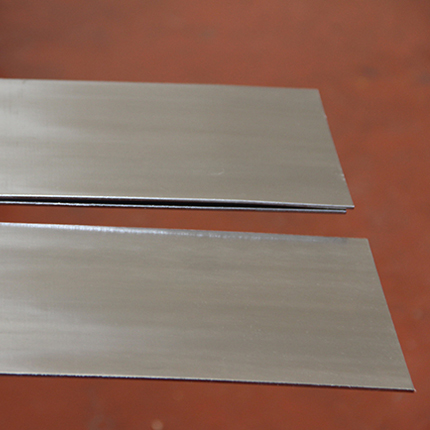

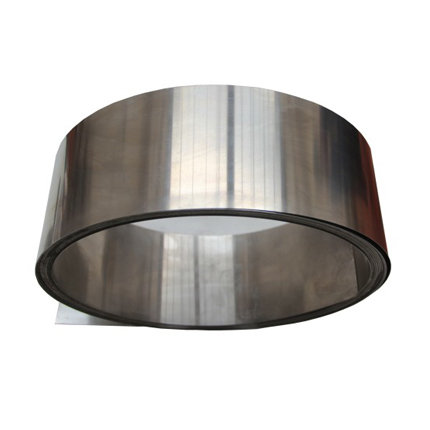

Strip 0.2Mm to 3.5Mm cold rolled
Flat wire 0.5Mm to 5.0Mm hot rolled
Round wire 0.1Mm to 5.0Mm cold drawn
Capillary tube outer diameter 8.0Mm to 1.0Mm, inner diameter 0.1Mm to 8.0Mm cold drawn
Tube outer diameter 120Mm to 8.0Mm, inner diameter 8.0Mm to 129Mm cold drawn

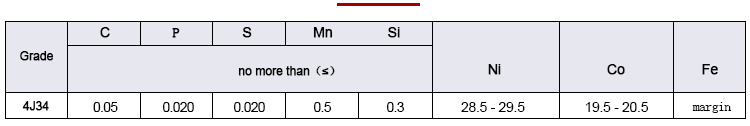

Expansion alloy 4J34 chemical composition

Chemical composition data sheet of expansion alloy 4J34

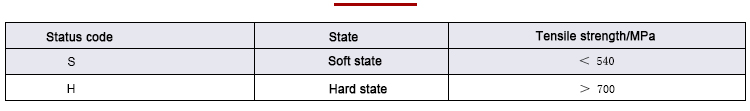

Mechanical properties/tensile strength (wire)

Mechanical properties/tensile strength (line) data sheet of expansion alloy 4J34


Mechanical properties/tensile strength (strip)

Expansion alloy 4J34 mechanical properties/tensile strength (with) data sheet

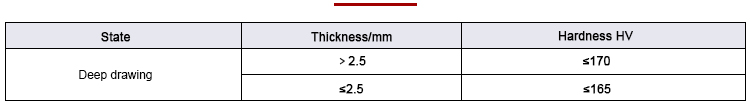

Expansion alloy 4J34 hardness

Hardness data sheet of expansion alloy 4J34

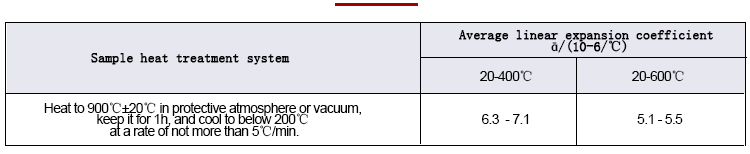

Expansion alloy 4J34 average expansion coefficient

Data sheet of average expansion coefficient of expansion alloy 4J34
