High temperature alloy GH3030

Grade:
GH3030
Standard:
Bars, plates, strips, pipes

Surface treatment:
Hot rolled, Hot forging, Cold pull, Cold rolled, Cold drawn
Color:
High temperature alloy GH3030 Description

High temperature alloy GH3030 is a solid solution strengthened superalloy. It has satisfactory thermal strength and high plasticity below 800℃, and has good oxidation resistance, thermal fatigue, cold stamping and welding process performance. The alloy is single-phase austenite after solution treatment, and the structure is stable during use.


High temperature alloy GH3030 specifications

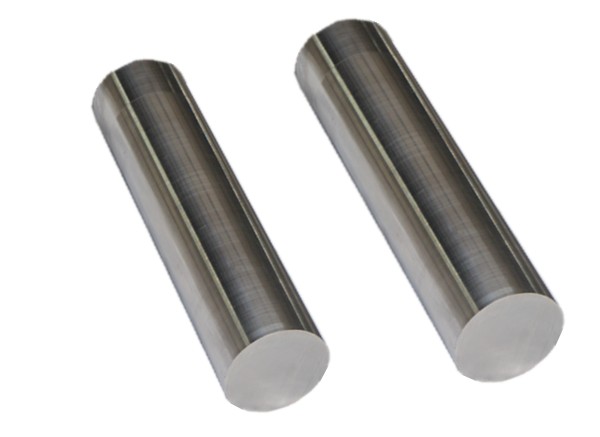

Bar 5.0Mm to 8.0Mm cold drawn; 8.0Mm to 30.0Mm hot rolled; 30.0Mm to 180.0Mm hot forged

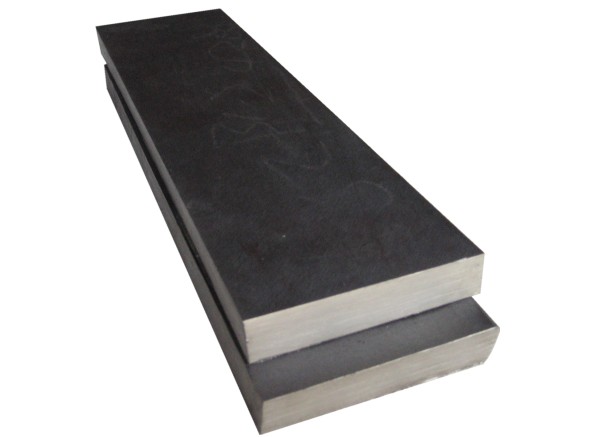

Plate 3.5Mm to 30.0Mm hot rolling; 30.0Mm to 40.0Mm hot forging

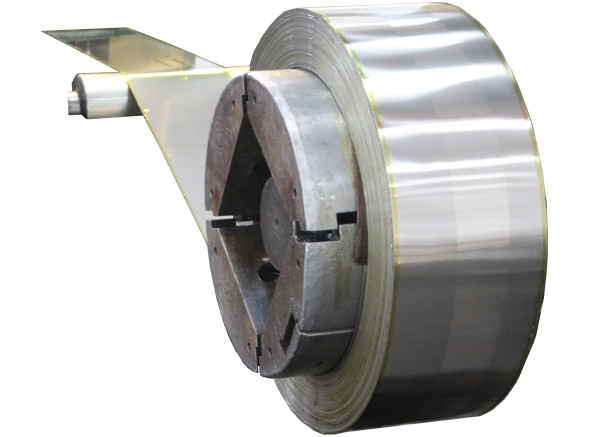

Strip 0.2Mm to 3.5Mm cold rolled
Tube outer diameter 120Mm to 8.0Mm, inner diameter 8.0Mm to 129Mm cold drawn


High temperature alloy GH3030 specifications

Superalloy GH3030 specification data sheet


Physical properties of High temperature alloy GH3030

Physical properties of superalloy GH3030 data sheet


High temperature alloy GH3030 oxidation resistance

Superalloy GH3030 oxidation resistance data sheet

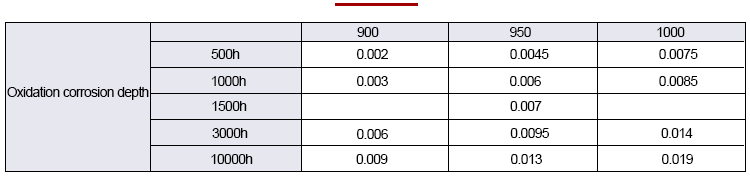

Oxidation corrosion depth of superalloy GH3030 at high temperature

High temperature oxidation corrosion depth data table of high temperature GH3030


Mechanical properties of superalloy GH3030

Table of mechanical properties of GH3030 superalloy


Application of high temperature alloy GH3030
Main uses: turbines, engine combustion chamber parts, high temperature containers, structural parts, thermocouple protective covers.
