High quality, factory price, industrial, hot rolled, medical implant titanium plate

Grade:
GR1,GR2,GR3
Standard:
ASTM B 265,ASME SB265 AMS491

Surface treatment:
Polishing, pickling, machining, sandblasting, etc.
Color:
Metallic color

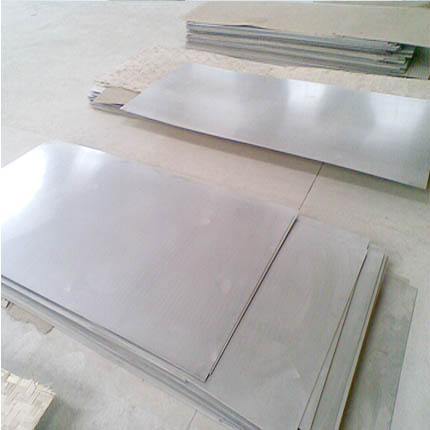

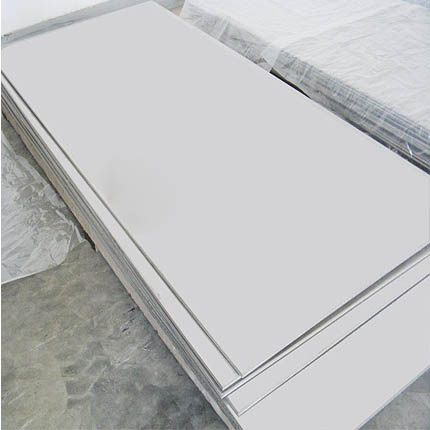

Titanium Plate / Sheet Description

The titanium plate & Sheet produced by XK Metal has high strength, low density, good mechanical properties, toughness and corrosion resistance. .It has excellent corrosion resistance in acid, alkali, and salt media, especially Cl-corrosion. Resistant to sewage corrosion, scale will not deposit on the surface of the titanium plate.


Titanium plate / Sheet production specifications

T 0.5-1.0mm x W1000mm x L 2000-4000mm

T 1.0-5.0mm x W1000-1500mm x L 2000-3500mm

T 5.0- 30mm x W1000-2500mm x L 3000-6000mm

T 30- 80mm x W1000mm x L 2000mm


Titanium  plate / Sheet  Chemical Composition

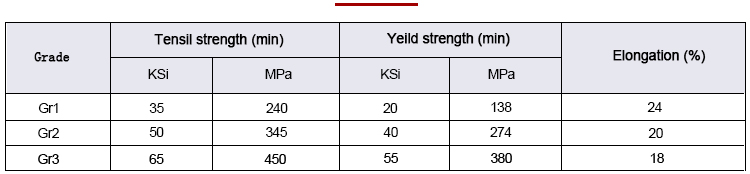

Titanium  plate / Sheet  Mechanical Property



Titanium plate / sheet production process

•    Hot forging is a forging process performed above the metal recrystallization temperature.

•    Hot rolling is a rolling process performed at a temperature higher than the recrystallization temperature.

•    Cold rolling is a rolling process in which the plastic deformation temperature is lower than the recovery temperature.

•    Annealing slowly heats the metal to a certain temperature, keeps it for a sufficient time, and then cools it at an appropriate speed (usually slow cooling, sometimes controlled cooling).

•    Pickling immerses the parts in an aqueous solution such as sulfuric acid to remove oxides and other thin films on the metal surface. It is the pre-treatment or intermediate treatment of electroplating, enamel, rolling and other processes.


Titanium plate / sheet application
It is widely used in petroleum, chemical, electric power, metallurgy, chemical fiber, food, pharmaceutical, chlor-alkali, vacuum salt production, fine chemical, biological engineering, seawater desalination, marine engineering and other industries.
