Niobium Foil Manufacturer Factory Wholesale Price

Grade:
R04200,R04210,R04251,R04261,Nb1,Nb2
Standard:
ASTM B393

Surface treatment:
Polished, Vannum Annealed,Cold-rolled, Bright
Color:
Metallic color
Niobium Foil / Strip Description

Niobium Foil & Niobium strip is widely used in industry, electric light source, heating element and electric vacuum equipment of heat shield, etc.


Niobium (Nb) Foil / Strip Specification

Thickness 0.02 Mm to 0.09 Mm

Width 30 Mm to 300 Mm

Length >50 Mm

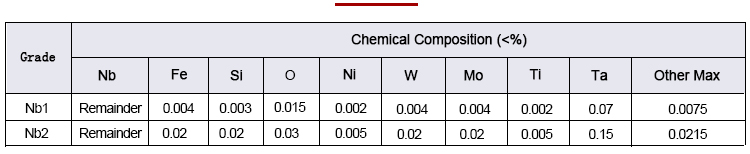

Composition analysis of niobium foil

Niobium foil composition analysis data sheet

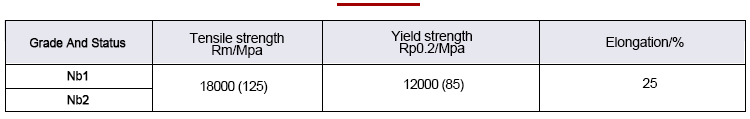

Mechanical properties of niobium foil

Niobium Foil Mechanical Performance Data Sheet


Allowable tolerance size of niobium foil

Permissible Dimension Tolerance Table of Niobium Foil


Niobium (Nb) Foil / Strip Advantage
•   Low Density and High Specificate Strength
•   Excellent Corrosion Resistance
•   Good resistance to effect of heat
•   Nonmagnetic and Non-toxic
•   High melting point, good anti-corrosion, excellent super-conduction and other unique characteristics.


Niobium (Nb) Foil / Strip Advantage Application
•   Electronic industry, Chemistry, Electronical, Pharmaceutical industry.
•   Steel, Ceramics, Electronics, nuclear energy industries and superconductor technology.
•   Super condouctous, metled cast ingots and alloying agents.
•   Widely used in manufacturing various kinds of alloy steel, high temperature alloy, optical glass, cutting tool, superconducting materials and other industries.
