Super elastic alloy material 3J40 Supplier

Grade:
3J40
Standard:
Bar, strip, wire

Surface treatment:
Hot rolled, Hot forging, Cold rolled, Cold pull
Color:
Metallic color
Elastic alloy 3J40 Description

Elastic alloy 3J40 is a kind of shaft tip alloy used to make the shaft tips and small shafts of instruments and meters. It is non-magnetic, anti-vibration, and wear-resistant.


Elastic alloy 3J40 specification

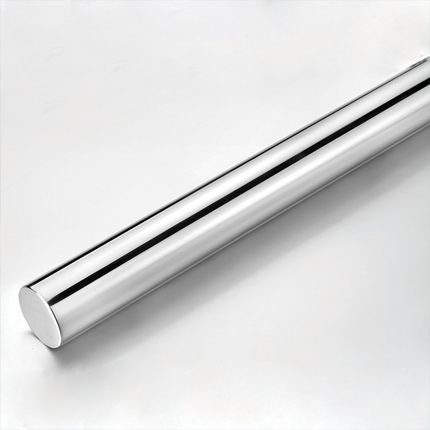

Bar 5.0Mm to 8.0Mm cold drawn; 8.0Mm to 30.0Mm hot rolled; 30.0Mm to 180.0Mm hot forged

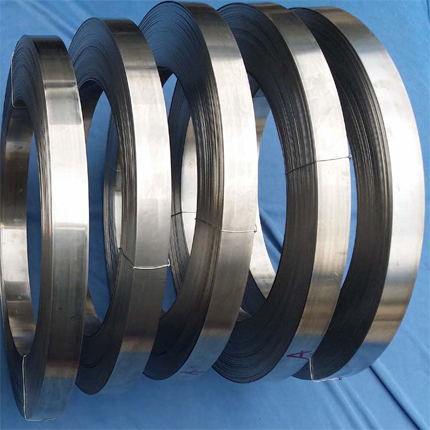

Strip 0.2Mm to 3.5Mm cold rolled

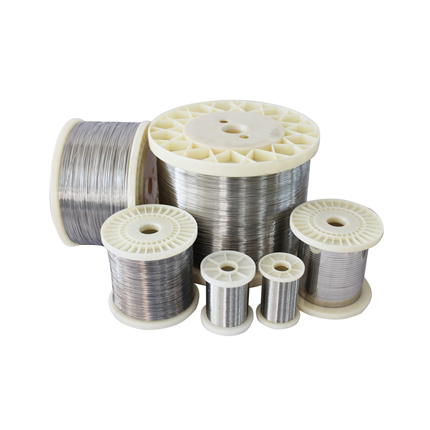

Wire 0.1Mm to 5.0Mm cold drawn

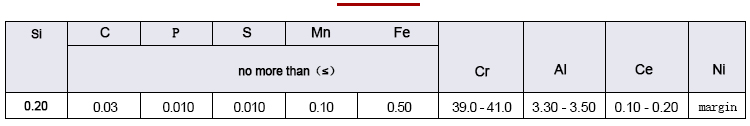

Chemical composition of elastic alloy 3J40

Data sheet of chemical composition of elastic alloy 3J40

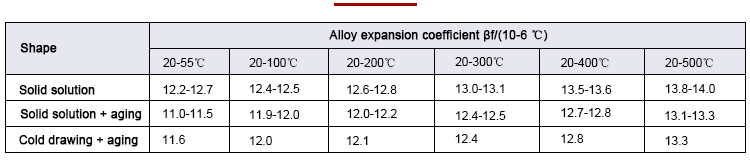

Physical properties of elastic alloy 3J40

Physical properties of elastic alloy 3J40 data sheet

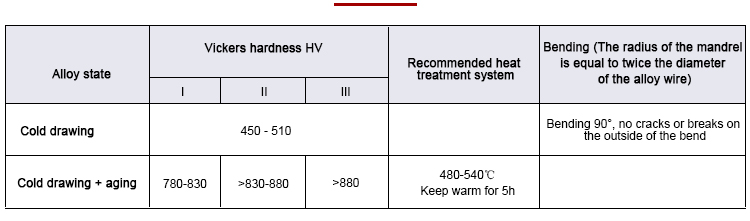

Mechanical properties of elastic alloy 3J40

Table of mechanical properties of elastic alloy 3J40t


Application of elastic alloy 3J40
The tip of the instrument, the shaft of the instrument.
