Non-magnetic, corrosion-resistant and highly elastic alloy 3J21

Grade:
3J21
Standard:
Bar, strip, wire

Surface treatment:
Hot forging, Cold rolled, Cold pull
Color:
Metallic color
Elastic alloy 3J21 Description

Elastic alloy 3J21 is a non-magnetic, corrosion-resistant and high-elastic alloy used to make elastic components. Non-magnetic, corrosion-resistant, high elasticity, high strength and good fatigue resistance.

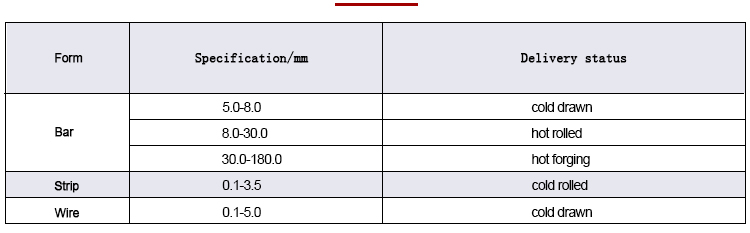

Elastic alloy 3J21 specification

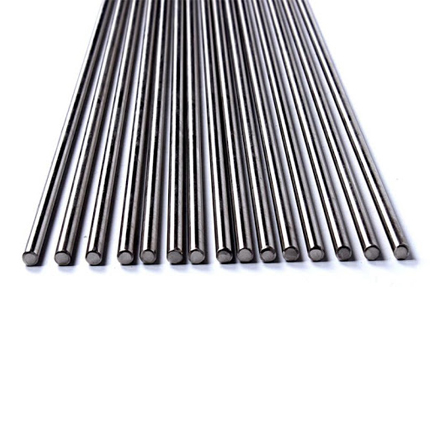

Bar 30.0Mm to 180.0Mm hot forging

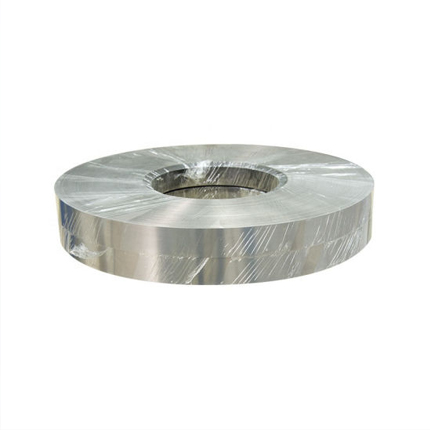

Strip 0.2Mm to 3.5Mm cold rolled

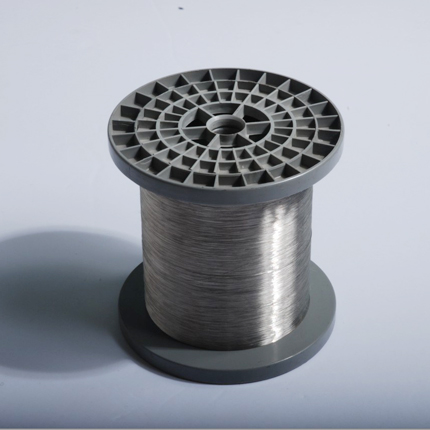

Wire 0.1Mm to 5.0Mm cold drawn


Chemical composition of elastic alloy 3J21

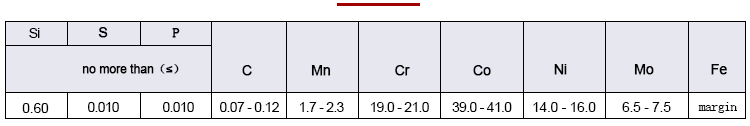

Data sheet of chemical composition of elastic alloy 3J21


Physical properties of elastic alloy 3J21

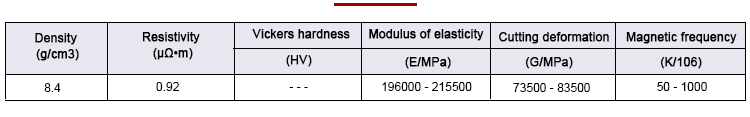

Data sheet of physical properties of elastic alloy 3J21


Mechanical properties of elastic alloy 3J21

Mechanical properties of elastic alloy 3J21


Application of elastic alloy 3J21
Mainly used for various instrument springs and other spring elements that work below 400°C.
