Soft magnetic alloy 1J50 is an iron-nickel soft magnetic alloy

Grade:
1J50
Standard:

Surface treatment:
Cold pull Hot forging Hot rolled Cold rolled
Color:
Metallic color
Soft magnetic alloy 1J50 Description


The soft magnetic alloy 1J50 is an iron-nickel soft magnetic alloy.


Soft magnetic alloy 1J22 specification

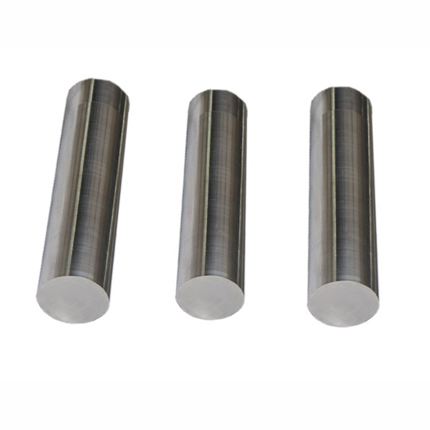

Bar 5.0 Mm to 8.0Mm cold drawn; 8.0 Mm to 30.0Mm hot rolled; 30.0 Mm to 180.0Mm hot forged

Plate 3.5 Mm to 30.0Mm hot rolling; 30.0 Mm to 40.0Mm hot forging

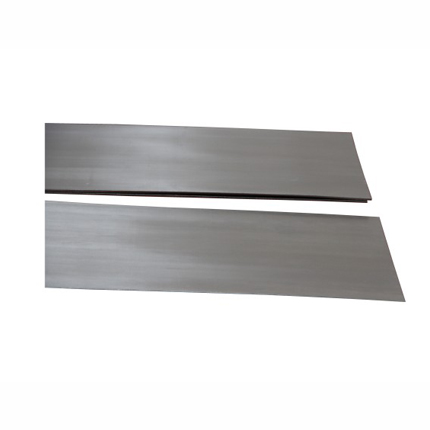

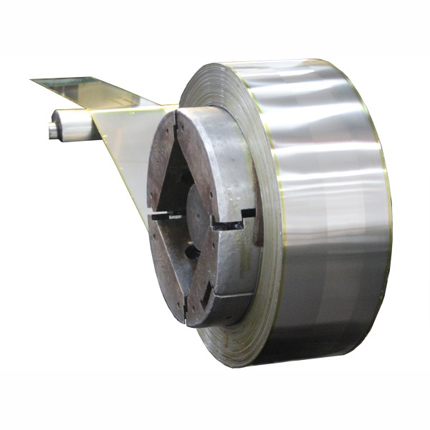

Strip 0.2 Mm to 3.5Mm cold rolled

Flat wire 0.5 Mm to 5.0Mm hot rolled

Round wire 0.1 Mm to 5.0Mm cold drawn

Capillary tube outer diameter 8.0 Mm to 1.0Mm, inner diameter 0.1 Mm to 8.0Mm cold drawn

Tube outer diameter 120 Mm to 8.0Mm, inner diameter 8.0Mm to 129Mm cold drawn

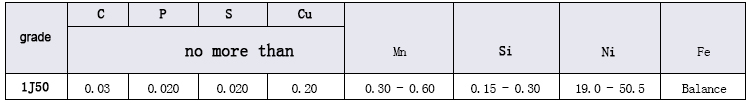

Chemical composition of soft magnetic alloy 1J50

Chemical composition icon of soft magnetic alloy 1J50


Physical properties of soft magnetic alloy 1J50

Soft magnetic alloy 1J50 physical properties icon

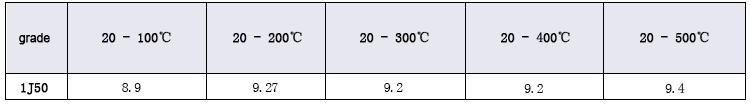

Coefficient of expansion of soft magnetic alloy 1J50

Soft magnetic alloy 1J50 linear expansion coefficient icon


Application of soft magnetic alloy 1J50
Used to manufacture amplifiers, choke coils, rectifier cores, and computer device components that work in a medium magnetic field.
