High saturation strong magnetic induction iron-cobalt-vanadium soft magnetic alloy

Grade:
1J22
Standard:
GB/T 14986-2008 YB/T15002-94

Surface treatment:
Cold rolled strip, hot forged bar, hot forged block
Color:
Metallic color
Soft Magnetic Alloy 1J22 Description


The soft magnetic alloy 1J22 is a high saturation magnetic induction strength iron-cobalt-vanadium soft magnetic alloy.


Soft magnetic alloy 1J22 specification

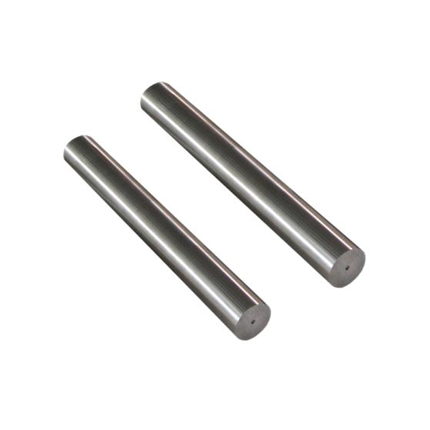

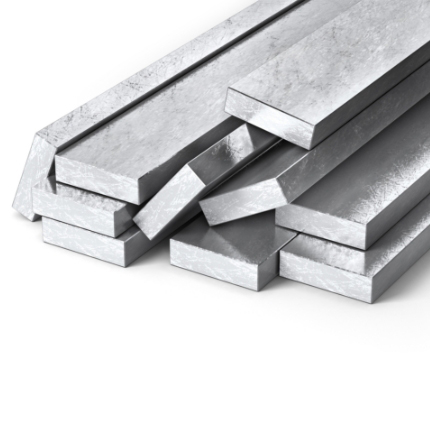

Bar 8.0Mm to 30.0Mm hot rolled ;30.0Mm to 180.0Mm hot forging

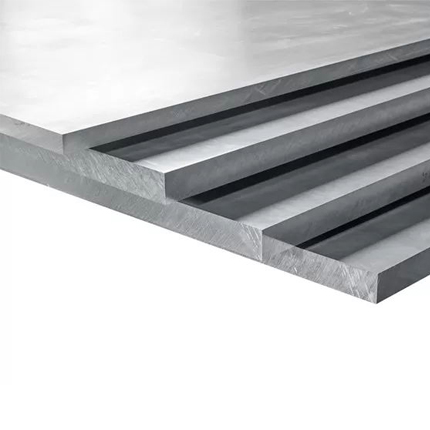

Plate 3.5 Mm to 30.0Mm hot rolled ; 30.0Mm to 40.0Mm hot forging

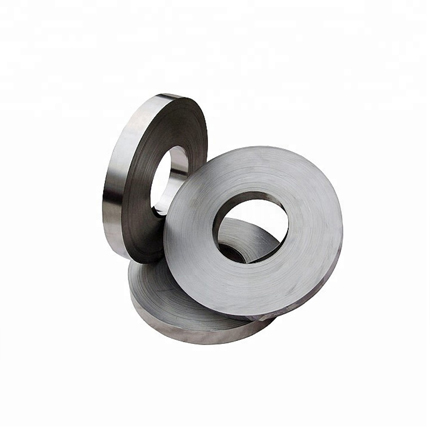

Strip 0.05Mm to 1.0Mm cold rolled

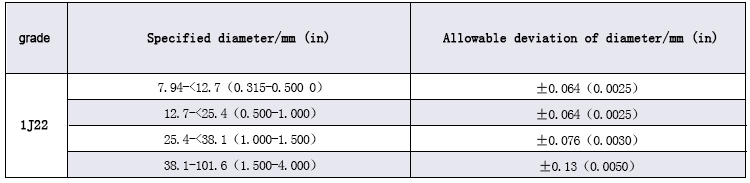

Soft magnetic alloy 1J22 size and allowable deviation/cold processed bar

Soft magnetic alloy 1J22 size and allowable deviation chart

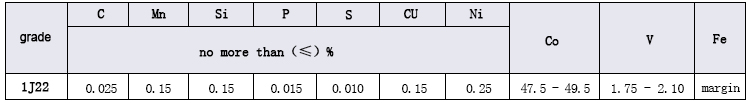

Soft magnetic alloys 1J22 Chemical composition

Chemical composition icon of soft magnetic alloy 1J22

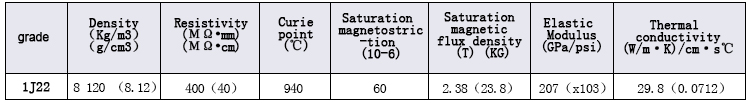

Analysis of physical properties of soft magnetic alloys 1J22

Soft magnetic alloy 1J22 physical properties icon

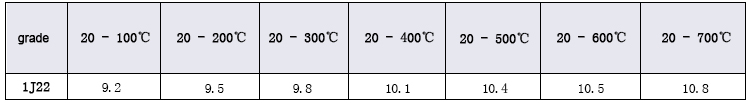

Expansion coefficient of soft magnetic alloy 1J22

Soft magnetic alloy 1J22 linear expansion coefficient icon


Application of soft magnetic alloy 1J22
Electromagnet pole head, end welded tube in magnetron, telephone headset diaphragm, torque horse rotor, magnetostrictive transducer iron core
