Molybdenum wire is used as a material for heating high-temperature furnaces

Grade:
Mo1 RMo1MoTi0.5Zr0.1(TZM)Mo3G
Standard:
ASTM B 387

Surface treatment:
Black, Chemically cleaned
Color:
Metallic color

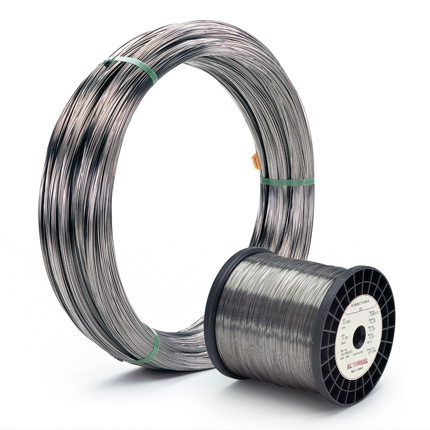

Molybdenum Wire Description

Molybdenum wire is a kind of molybdenum metal product. The molybdenum wire produced by XK Metal can be divided into four products: ordinary molybdenum wire, white molybdenum wire, wire-cut molybdenum wire and sprayed molybdenum wire. The minimum diameter can reach 0.02mm. Ordinary molybdenum wire and white molybdenum wire can be used for various parts of electron tube grids, hooks and electric vacuum parts, core wires in electric vacuum, electric light source industry, vacuum or protective atmosphere high temperature furnace heating material support rods, lead wires, etc. The sprayed molybdenum wire is suitable for the surface spraying of wear-resistant parts such as automobile piston rings, gears, and cylinder blocks.


Molybdenum (Mo) Wire Specification

Diameter Φ 0.15Mm to Φ1.8Mm

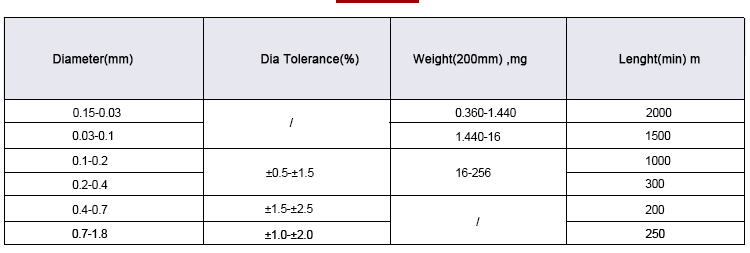

Molybdenum wire allowable tolerance size

Molybdenum wire allowable tolerance size data sheet

In addition, we also produce molybdenum spray wires with diameters of Φ1.45Mm to 3.17Mm, magnetron molybdenum wires with Diameter Φ 1.0Mm to 3.0Mm, and thick molybdenum wires with diameters of Φ0.35Mm to 4Mm, etc.


Molybdenum (Mo) Wire Applications:

  • •    Molybdenum cutting Wires is used in high-speed Wire cut Electrical Discharge Machining(WEDM-HS) with low price and higher quality.
  • •    Molybdenum spay wires are used to spray automotive components, like piston ring, synchronizing rings, gear boxes.
  • •    Used as heating materials due to its resistance to high temperature and corrosion.
  • •    Moly wire is often applied to stent filament incandescent lamp, halogen lamps, electronic tube socket, tungsten filament with the mandrel, etc. due to its good electrical conductivity and thermal conductivity.
  • •    Used as magnetron cathode anchor of microwave oven
